Managing Bicycle Fleets with UHF RFID Technology
Bike share programs, rental fleets, campus bike systems, and cycling retail warehouses all face the same fundamental problem: tracking hundreds or thousands of bicycles as they move between docking stations, storage facilities, maintenance bays, and distribution points. Manual logging is too slow for fleet-scale operations, and barcode scanning requires visual access to each bike frame — difficult when bikes are stacked in racks, packed in shipping containers, or clustered at busy docking stations.
UHF RFID solves this by enabling bulk scanning of multiple bikes simultaneously from a distance, without needing to handle or visually inspect each bicycle individually.
The Challenge: High-Volume Bike Tracking at Scale
Bicycle fleet operators deal with several specific challenges:
- Volume: Large bike share systems manage 500 to 10,000 bicycles. Even retail warehouses may stock hundreds of bikes at any time.
- Mixed surfaces: Bike frames are typically metal (aluminum, steel, carbon fiber), which can interfere with RFID signals. Tag placement must account for this.
- Outdoor exposure: Bikes are stored and used outdoors in rain, UV exposure, and temperature fluctuations. Tags must be durable.
- Vandalism and tamper resistance: In public bike share systems, tags must resist casual removal or damage.
- Scanning speed: Loading or unloading a shipping container of bikes, or scanning a full docking station, needs to take seconds, not minutes.
What UHF Tags Should You Use to Track Bicycles, and How Do You Mount Them?
Two Tag Options for Different Mounting Requirements
We use two UHF RFID tags for this bicycle fleet use case: the 9662 UHF RFID sticker and the ZD330 RFID cable tie tag.
9662 UHF RFID Sticker is the primary choice for bike frame tracking. The tag measures 73 × 20 mm and has a self-adhesive backing for mounting on a suitable frame tube, seat post, or fork surface. Its read range is up to 8 m (26.3 ft), depending on the reader, antenna, mounting surface, tag orientation, and environment.
ZD330 RFID Cable Tie Tag is ideal for spoke, wheel, or handlebar mounting where adhesive will not bond reliably. It uses a 285 mm tie with a 79 × 25 mm tag head and has a read range up to 15 m (49 ft), depending on the reader, antenna, mounting surface, tag orientation, and environment. The nylon cable tie has 40 kg tensile strength and a self-locking mechanism. It is reusable and detachable, making it suitable for rental fleets where bikes are periodically re-tagged or decommissioned.
Tag Placement Strategy for Bicycles
- Frame mounting with 9662 sticker: Clean a flat section of the seat tube or down tube with alcohol. Peel and apply the tag. The curved tube surface is handled well by the flexible inlay.
- Wheel or spoke mounting with ZD330 cable tie: Thread the cable tie through the spoke cluster or around the fork crown. Pull tight — the self-locking mechanism holds at up to 40kg of tensile force.
- Programming: Encode each tag with a unique EPC code matching the bike serial number or fleet ID. Lock the memory after writing to prevent reprogramming.
- Register in fleet management system: Link each tag EPC to the bicycle record including model, size, color, and assigned location.
Reader Setup for Fleet Operations

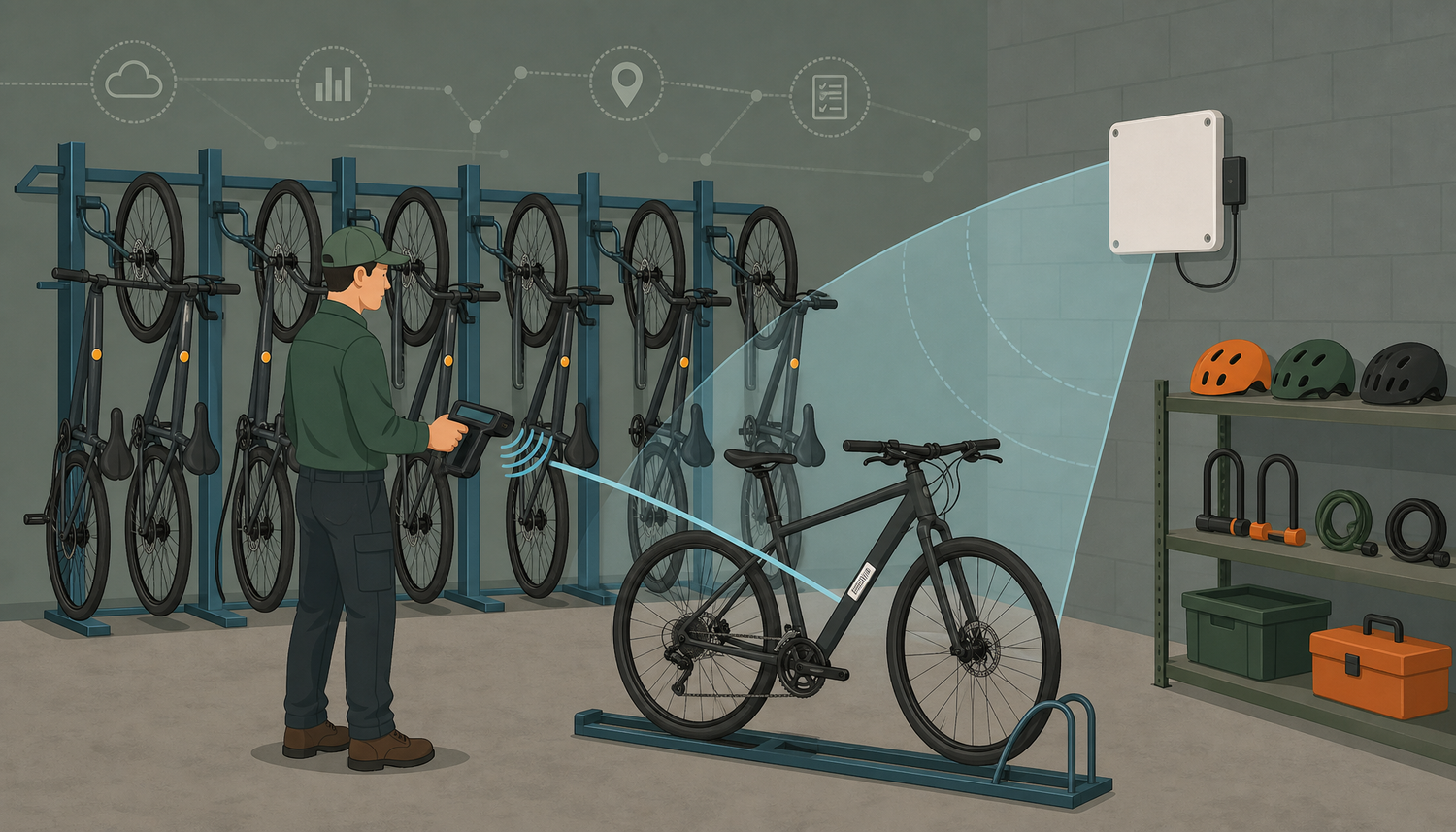

For docking stations and warehouses, a fixed UHF reader with an antenna array can scan tagged bikes within its field. When a truck arrives at a depot with a container of bikes, a portal reader can read tags as bikes pass through, reducing manual scanning. In this use case, the 9662 tag reads up to 8 m (26.3 ft), while the ZD330 reads up to 15 m (49 ft). Actual coverage depends on the reader, antenna, mounting surface, tag orientation, and environment, so test the planned setup before deployment.
Key Benefits for Bike Fleet Operators
- Bulk scanning: Read hundreds of bikes in seconds as they pass through a portal or sit in a rack.
- Model-specific read range: The 9662 reads up to 8 m (26.3 ft), while the ZD330 reads up to 15 m (49 ft), depending on the reader, antenna, mounting surface, tag orientation, and environment.
- Flexible mounting: Adhesive sticker for frames, cable tie for wheels and handlebars — choose per application.
- Outdoor durable: Both tag types are built for outdoor use with resistance to weather, UV, and moisture.
- Self-locking cable tie: 40kg tensile strength prevents accidental removal in public bike share environments.
- Reusable cable tie option: Detachable variants allow tag recovery and reuse when bikes are decommissioned.
- ISO 18000-6C / EPC Gen 2: Compatible with all standard UHF readers and fleet management platforms.
Product Specifications
| Specification | 9662 RFID Sticker | ZD330 Cable Tie Tag |
|---|---|---|
| Frequency | 860-960 MHz | 860-960 MHz |
| Protocol | ISO 18000-6C / EPC Gen 2 | ISO 18000-6C / EPC Gen 2 |
| Dimensions | 73 × 20 mm | 285 mm tie; 79 × 25 mm tag head |
| Mounting | Self-adhesive | Cable tie wrap (40kg tensile) |
| Read Range | Up to 8 m (26.3 ft) | Up to 15 m (49 ft) |
| Locking | Adhesive bond | Self-locking, reusable, detachable options |
| Memory | 96-bit EPC + 512-bit user memory | 96-bit EPC + user memory |
| Outdoor Use | Yes | Yes |
Best For
This tracking solution suits bike share operators, bicycle rental companies, cycling retail warehouses, campus bike programs, and municipal cycling infrastructure. It also applies to scooter fleets, motorcycle inventory, and any two-wheeled vehicle tracking at scale.
