7030 UHF Anti Metal Tags Sticker PET 3M Adhesive TagtixRFID

7030 UHF Anti Metal Tags Sticker PET 3M Adhesive

Name: 7030 UHF Anti Metal Tags Sticker PET 3M Adhesive
Brand: TagtixRFID
SKU: 7030-p1
Price: 1.2 USD
Availability: InStock

Anti-Metal

$1.20 USD

UHF 860-960Mhz. Swift reading up to 12 meters in range.

Only 1.2mm thick.

70mm * 30mm (2.75 in * 1.18 in) anti-metal sticker tags. Easy to stick onto metal equipment.

Easy to track large assets in warehouses and manage inventory.

Data Sheets

Protocol: ISO/IEC 18000-6C, Global EPC Class1 Gen2

Chip: NXP-U8/MR6-P

Operating frequency: UHF 860-960Mhz

Material: PET, 3M Adhesive

Size: 70mm * 30mm * 1.2mm (2.75 in * 1.18 in * 0.05 in)

Markable surface

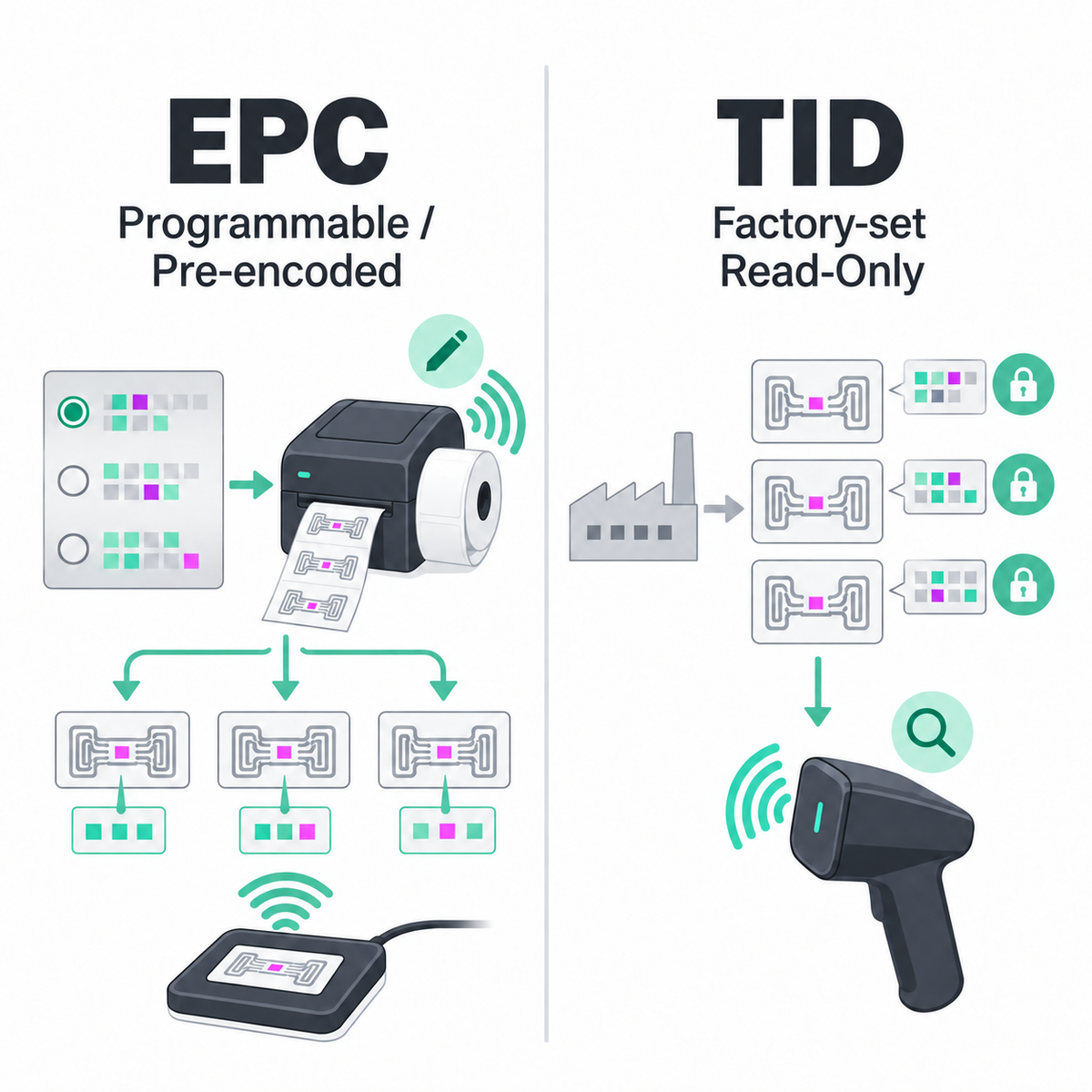

Memory: 96bits TID, 128bits EPC, 512bits user

Working mode: Read and write

Read Distance: 0-12m (39ft) (Depends on reader and environment)

Data retention: >10 years

Programming Cycles: >100,000 times

Working Temperature: -40°C-85°C

Stocking Temperature: -20°C-50°C

Read Before Purchase

Your phone's NFC cannot read these tags. UHF frequency is different from NFC frequency of 13.56Mhz.

The 125kHz/13.56MHz readers will not work. Since this is the UHF band, you need a UHF reader that can read frequency of 860-960 Mhz.

Certain environmental factors, such as metal surfaces and other radio frequency interference, may affect regular tags. Make sure to buy Anti-Metal options for metal surfaces.

Ensure your reader can read up to 12 meters as well.

Please ensure tech specifications with us before purchase; returns are not accepted for specification mismatches due to customer error.

Size:

1 piece

1 piece 20 pieces 100 pieces

Variant

Quantity:

FREE Shipping

Duties and import taxes are all taken care of. You don't pay extra after the purchase.

Peace of Mind with 1-Year Warranty

If any issues arise within the first year of your purchase, we will work with you to make it right.

7030 UHF Anti Metal Tags Sticker PET 3M Adhesive

$1.20 USD

Free to Use On Metal Surface

Even on curved surfaces

Waterproof and soft PET material. Only 1.2mm thick.

No Need For Screws

3M adhesive layer. Never lose a single inventory

Need Different Sizes?

We've Got Multiple Options in Material and Size

Click on the chat button and tell us what you need.

Alien H3 860-960Mhz UHF Tags 6535 PET 3M Adhesive

Alien H3 860-960Mhz UHF Tags 4015 PET 3M Adhesive

Chip Capacity

7030 UHF Anti Metal Tags Sticker PET 3M Adhesive

Read As Far As 12 Meter. Firmly Stick On Metal Equipment - Even Curvy Surface

7030 UHF Anti Metal Tags Sticker PET 3M Adhesive

From $1.20 USD

PET Material

Sleek and soft. Resistant to accidental scraping and wear.

Self-Adhesive

3M Adhesive Layer. Stick on metal surfaces even with curvature.

Anti-Metal

Can be used on metal objects. Don’t worry about without interference.

Markable Surface

You can write on the labels with markers. Don’t worry about it fading off.

NXP Chip

Swift scanning response. Real-time tracking.

Easy Programming

Read-write lock function. Can be repeatedly edited or switched to read-only mode.

Up to 30% off for bulk orders

Extended Reading Range Up to 12 Meters

Reliable reading and writing. Don't worry about interference at all!

Buy More, Get Up to 30% Off

Various sizes of same functionality that suit your project needs. Click on that chat button to tell us your needs.

Need Different Sizes?

We've Got Multiple Options in Material and Size

Click on the chat button and tell us what you need.

7030 UHF Anti Metal Tags Sticker PET 3M Adhesive

Frequently Asked

Still got a question or a special request? Click that chat button.

What type of reader would work with 7030 UHF metal tags?

It can work with any UHF reader. Reading distance should be 0-7 meters.

Would the 7030 UHF metal tags work for a fast inventory count?

Yes, you can use it for fast inventory count if you put one UHF tag on each product, even on metal surfaces.

Does each 7030 UHF metal label have a unique ID?

Yes, each label has a unique ID number.

Is the UID of the 7030 UHF metal tags changeable?

Yes, it is changeable. You can rewrite the UHF metal tag data with your UHF reader.

Can I use the 7030 UHF metal sticker on metal equipment?

Yes, you can. The 7030 UHF metal tag can work without metal inference.

Can I read 7030 UHF RFID metal tags via my phone's NFC?

No, you can’t read these UHF tags using your phone’s NFC. It's a different frequency (13.56Mhz).
